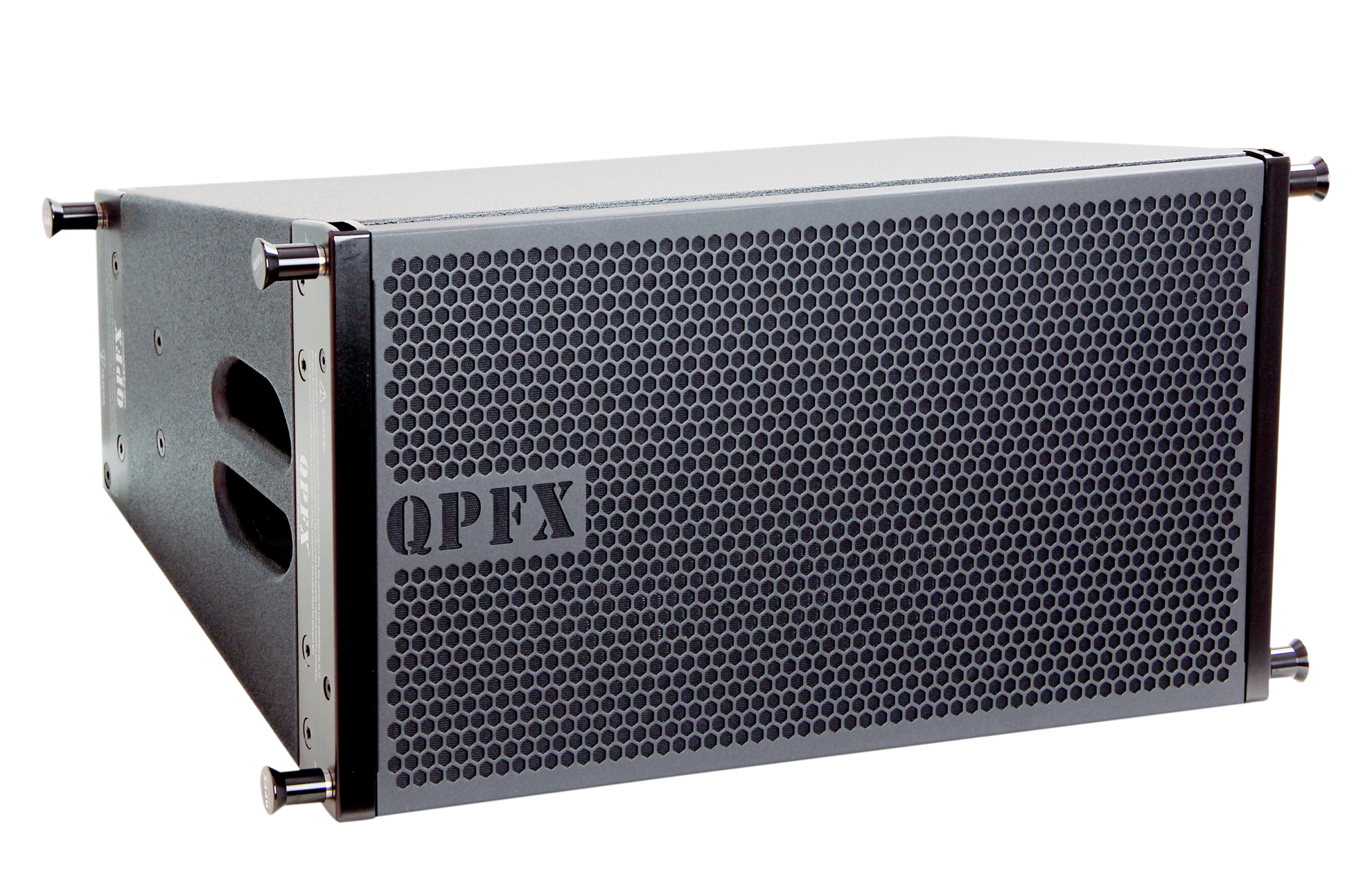

产品型号 model:Compact双12线阵
产品类型 Product Type:大型紧凑三分频线性阵列
频率响应Frequency response:50HZ-22KHZ
连续节目功率Continuous program power:3000W
低频 Low AES / peak:2800W/8000W
中频 Mid /  AES / peak:2X150W/2X1000W
高频  High AES / peak:2x80W/2X320W
低频1W/1m  Sensitivity low 1W / 1m:103dB
中/高频1W/1m Sensitivity mid / high 1W / 1m:118dB
最大峰值声压 Low Maximum peak SPL:143dB
高频最大连续 Mid/High Maximum peak SPL:148dB
指向性 Dispersion horizontal/ vertical:H100°,V10°
输入阻抗 Nominal impedance LF / MF+HF:Low 4 Ω (1+/1-) Mid /High 4Ω (2+/2-)
组件 Components:2x12 " neodymium magnet waterproof paper basin
中频 Mid(Coaxial neodymium compression drive):2x3.5" DDP(coaxial neodymium compression drive)
高频 High:2x1.4" Precise and transparent high frequency driver
分频方式  Crossover mode:Built-in mid-Hi range crossover(The bass requires an external crossover)
输入接线方式 Enter the wiring methodINPUT-1+1- High mid  2+2-Low(The bass requires an external crossover)
箱体材料  Box materials:Baltic birch plywood
箱体五金  Box hardware:Black stainless steel
前面罩面网  Front mask mesh:Stainless steel spraying
防尘棉  Dust cotton:Sound transparent and waterproof
防水性能 Waterproof:IP55
安装吊挂方式 Install hanging mode:4 o'clock, connecting rod
插销方式 Plug-in modeAutomatic integration
箱体外观 Polyurea coating (water resistant):Polyurea coating (water resistant)
规格尺寸 Dimensions :W760mmxH356mmxD474mm
净重量 Net:33.4KG
