UBSUBS
UBS-1时间:2022-02-07 22:29:29 浏览次数:

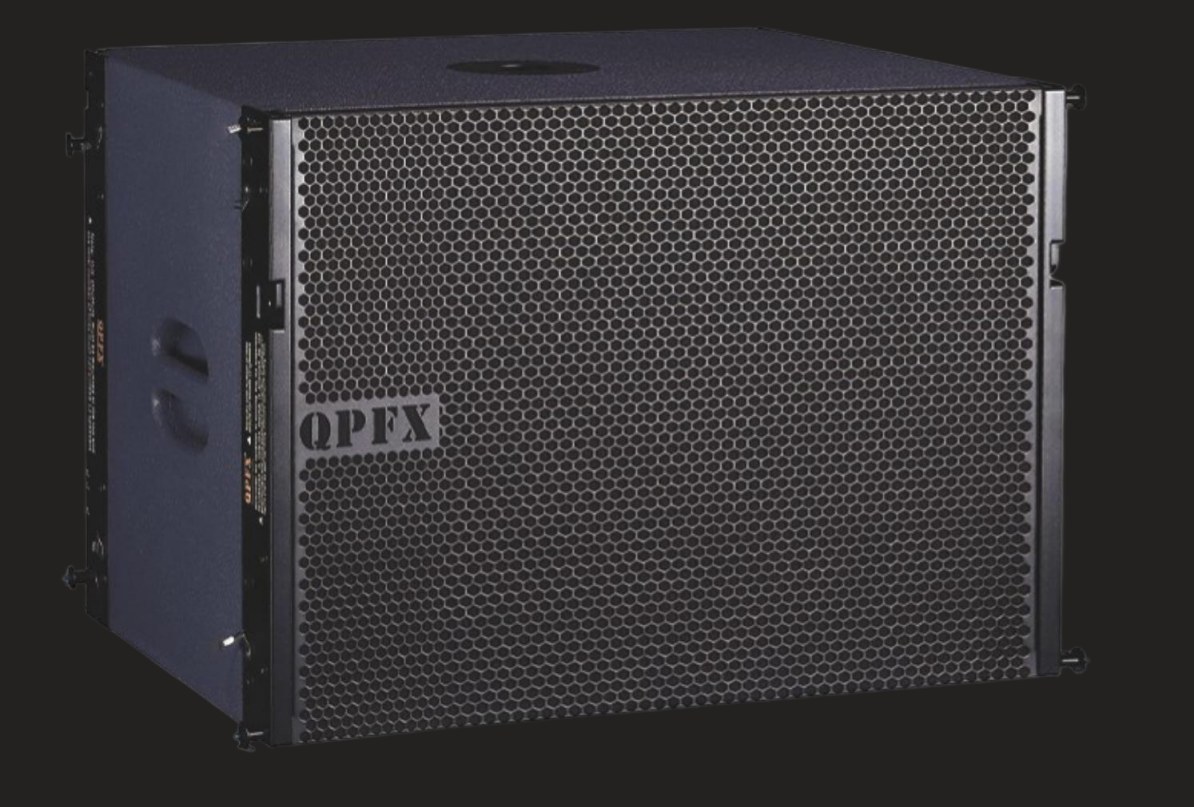

产品型号 model: | UBS-1 |
产品类型 Product Type: | 超低频系统Ultra-low |
频率响应 Frequency response: | 30HZ-500HZ |
额定节目功率 Rated program power: | 3400W |
节目连续最大(MAX.SPL peak: | 6000W |
低频灵敏度1W/1m Sensitivity low 1W / 1m: | 98dB |
最大声压 Maximum SPL: | 139dB |
低频长期 Low long-term: | 114dB |
指向性 Dispersion horizontal/ vertical: | 360° |
输入阻抗 Nominal impedance : | Low 8Ω (1+/1-) |
组件结构 Component structure: | split four layer winding aluminium voice coil 116 mm (4.5 in) |
内部组件 internal components | 1x18"Low neodymium magnet waterproof paper basin |
输入连接器 Input connectors: | NL4X2 INPUT-1/LINK-OUT-1 |
分频方式 Crossover mode: | Passive built-in crossover |
输入接线方式 Enter the wiring method | INPUT-2+2- |
箱体板材 Box plate: | Baltic birch plywood |
箱体五金 Box hardware: | Black stainless steel |
前面罩面网 Front mask mesh: | Black stainless steel |
防尘棉 Dust cotton: | Sound transparent and waterproof |
防水性能 Waterproof: | IP55 |
安装方式 Installation mode: | 4-point hanging or landing universal support hole x1 |
插销方式 Plug-in mode: | Automatic integration |
箱体外观 Polyurea coating (water resistant): | Polyurea coating (water resistant) |
规格尺寸 Dimensions : | W610mmxH510mmxD457mm |
净重量 Net: | 32KG |
